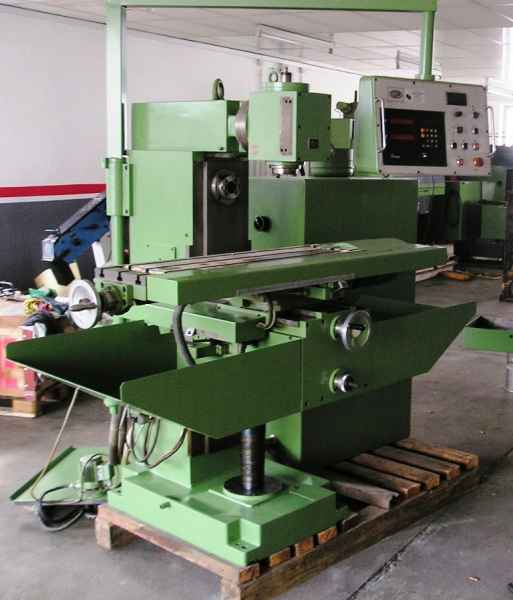

Kalau Anda sedang mencari milling machine, penawaran berikut ini bisa menjadi pertimbangan Anda. Tersedia satu unit stock milling machine dengan merk KLOPP (buatan Jerman), kondisi 80 persen. Berat kotor seluruhnya sekitar 1400 kg. Adapun spesifikasinya adalah sebagai berikut:
SPECIFICATION
| Milling spindle drive | |
| Input power | 3 kW |
| Number of steps (geometrically stepped) | 18 |
| Ratio range according to R 20/2, DIN 804: | 1,25 |
| Horizontal milling spindle | |
| Tool-holding fixtures: DIN 2079 | SK 40 |
| Ø of spindle in front bearing | 60 mm |
| Maximum torque | 320 Nm |
| Vertical milling spindle | |
| Tool-holding fixtures: DIN 2079 | SK 40 |
| Ø of the spindle in front bearing | 50 mm |
| Maximum torque | 320 Nm |
| Shiftable in traverse direction | 220 mm |
| Quill adjustment | 63 mm |
| Table, swiveling | |
| Mounting area, length x width | 1000 x 250 mm |
| 3 T-slots according to DIN 650, width x distance | 14 H8/90 |
| Ways automatically/manually | |
| Longitudinal motion (x) | 480/500 mm |
| Cross motion (y) | 230/250 mm |
| Vertical motion (z) | 380/400 mm |
| Feeds and rapid traverses | |
| Longitudinal feed continuously variable | 8-1680 mm/min |
| Rapid transverse | 2000 mm/min |
| Transverse feed continuously variable | 8-1680 mm/min |
| Rapid transverse | 4000 mm/min |
| Vertical feed continuously variable | 8-1680 mm/min |
| Rapid transverse | 4000 mm/min |
| Dimension and weight | |
| Total weight: | Approx. 1400 kg |
| Space without control cabinet: | Approx. 2600 x 2200 x 1800 mm |
| Weight | Approx. 1550 kg |
Mesin KLOPP ini memiliki beberapa kelebihan, antara lain, kemampuan mengupas/miling dua posisi, vertikal dan horizontal, dengan kapasitas mata pisau 50 dan 60 mm. Anda tertarik?
